Ⅰ. Products introduction

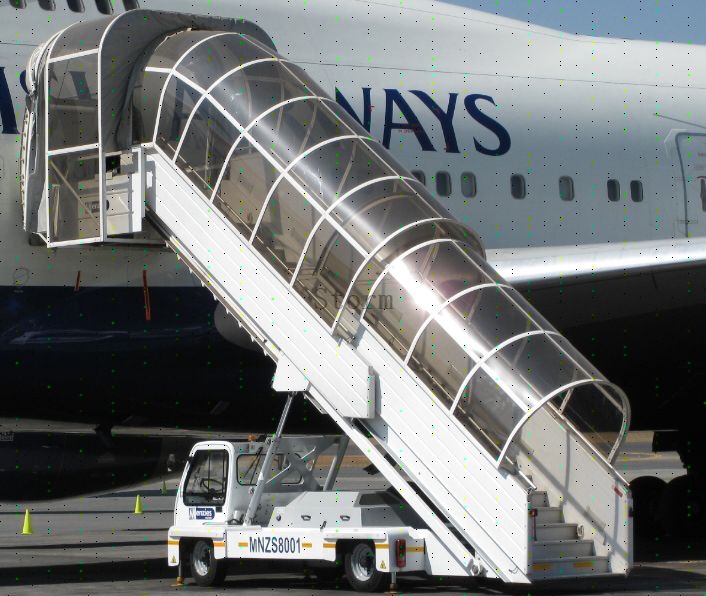

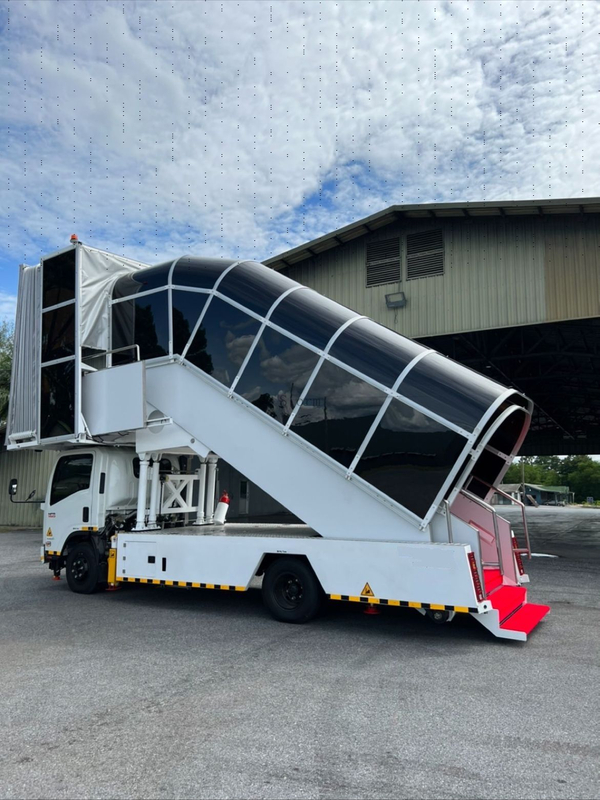

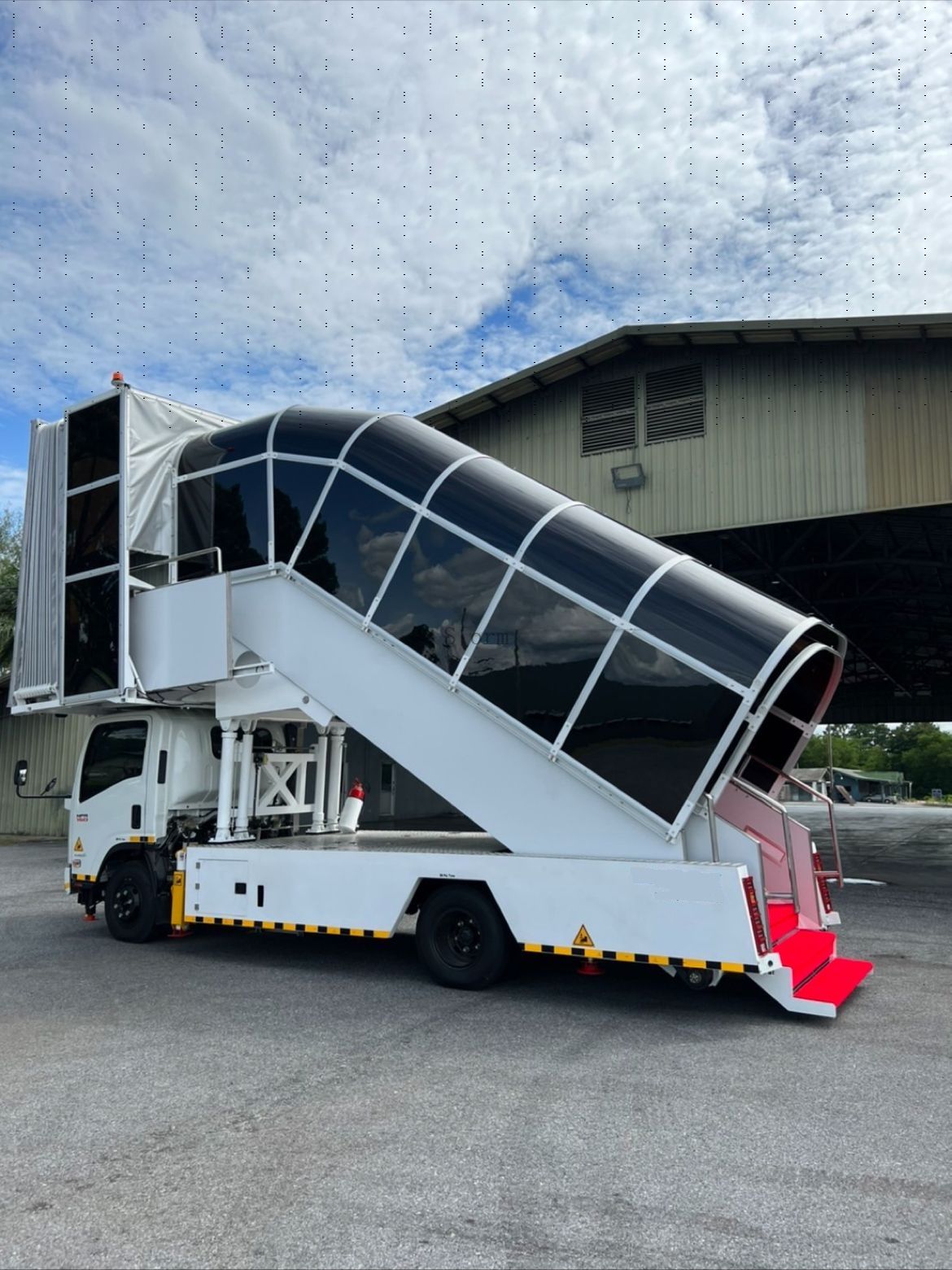

The designed height off ground for WTJ5060JKT mobile passenger stair is from 2370mm to 5630mm, which could be slightly adjusted for height tolerance between passengers stair and hatch, height of stair platform could reach 5800mm after slight adjustment, this type of passengers stair could be applied for A310, A320, A330, A340, B737, B747, B757, B767, B777.
National patent No. ZL 2007 2 0039192.2
II. Standard:
ZB/T50 001-87 Special vehicles--Engineering approval evaluation program
JB/T5943—91 welding general technical specification for construction machinery
IATA AHM—913
IATA AHM—910
IATA AHM—915 Standard control device
SAE--ARP836A Design of passenger steps and safety standard
Ⅲ. Major technical performance parameter
Chassis type | ISUZU QL1070A5KAY | ||
Engine | Type | ISUZU 4KH15HS | |
Max power | 110kW/2600rpm | ||
Overall dimension（length×width×height）mm | 7655×2500×3830 | ||
Wheelbase mm | 3815 | ||
Curb weight kg | 7850 | ||
Ground clearance mm | Min height | 2400 | |
Max height | 5800 | ||
Shrinking quantity of shrinking platform mm | 0--300 | ||
Fixed platform（length×width）mm | 2800×1500 | ||
Ladder step (width) mm | 1500 | ||
Ladder step (height) mm | 180 | ||
Ladder step (length) mm | 270 | ||
Fixed ladder | 15 | ||
Lift ladder | 13 | ||
Turnover ladder | 1 | ||
Maximum load-bearing (person) | 60 | ||
