Type | SZG4031 baggage tractor |

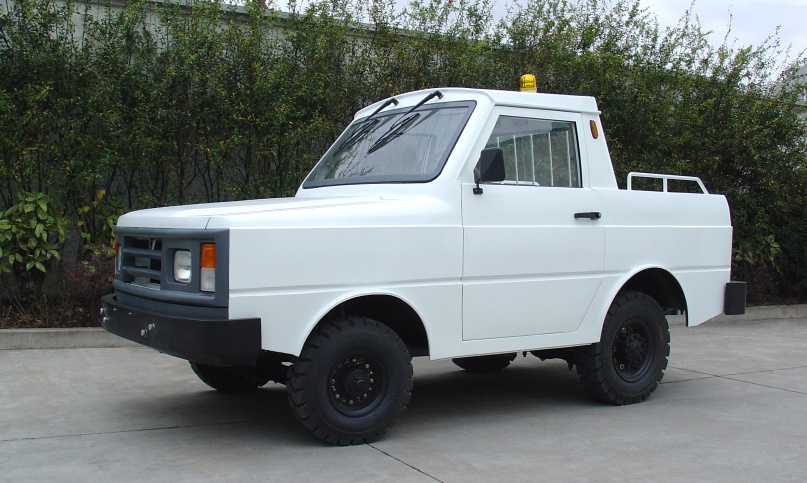

Real photo |
|
Configuration | |
Overall dimension（length*width*height MM） | 3860mm×1670mm×1720mm |
Rear dimension | 980mm×1360mm×300mm |
type | With cargo cabin, Rear axle driving |
Max. traction | 20KN |
Max. speed | 30km/h |
Max. grade ability | 30％ |
Min. radius of turning circle（outside MM） | 3600 |
Min. ground clearance MM | 110mm |
Total weight | 3060kg |
consumption of diesel | 218g/Kw.h |
wheelbase | 1850mm |
Tire（forward） | Forward tire 6.50-10、rear tire 7.00-12 |
Body Structure（made） | Composite beam structure |
suspend | Semi-elliptical leaf spring |
Damping | BJ130 drum-type |
Brake | NKRI Isuzu brake assembly, hoof, vacuum booster hydraulic control, rear drive wheel brake |
Hand brake mode | ZQ6450 Hand brake assembly |
Engine | JAC JX493G3 |
Engine power KW | 57kw/3600r/min（rotate speed 3600） |
Engine cooling | Water cool |
Engine torque NM | 172N.m/2000/r.min |
Auto transmission | CAS5-20Y15 |
Front axle | type：BJ-130 Front axle size：φ70×8 1.5-3mm |
Rear axle | main reducer： type：BJ-130 |
Steering gear with universal joint | Hydraulic power steering Type：p04-3411010 Mode：Circular ball power steering Transmission ratio：17.2:1 Maximum output torque：1000N.m full oil pressure：10MPa Oil Pump Volume：6L/min Free steering：not exceed 10° Steering range；not exceed±45° |
Effective tank capacity | capacity and requirements diesel tank：50KG GB252，-No.10（winter），0 No.10（summer） engine lubricating oil：5.6T winter CD class 11# Wood Oil SAE10W30。Summer CD class14号diesel oil or SAE 40。 |
mains input（V） | Battery：voltage 12V Type：6-QA-100 or 80G starter：concurrent 12V；power 2KW Generator：concurrent 12V，500W |
Option | Air conditioning |
Spare parts | 1、 Tools 1set 2、 extinguisher 1set 3、 documents1set |
