No. | Event | Unit | Design value | |
1 | Total length | mm | 3647 | |
2 | Total Width | mm | 1400 | |
3 | Total Height | mm | 1975 | |
4 | Front hanger | mm | 530 | |
5 | Rear hanger | mm | 665 | |
6 | Ground clearance | mm | 304.8 | |
7 | Min. Ground clearance | mm | 148 | |
8 | Approach angle | (°) | 20.2 | |
9 | Departure angle | (°) | 20.5 | |
10 | Min. Turning diameter for front wheel | mm | 7500 | |
11 | Wheelbase | mm | 1997 | |
12 | Wheelbase | front | mm | 1210 |
rear | mm | 1210 | ||
13 | Curb weight | kg | 5050 | |
14 | Load capacity of front wheel | kg | 1830 | |
15 | Load capacity of rear wheel | kg | 3290 | |
16 | Max. driving speed | km/h | 23/10 | |
17 | Gradient | % | 20 | |
18 | Max. drawbar pull | kN | 30 | |
19 | Rated drawbar pull | kN | 9 | |
20 | Rated traction weight | Kg | 30000 | |
21 | Total weight of trailer | kg | --- |

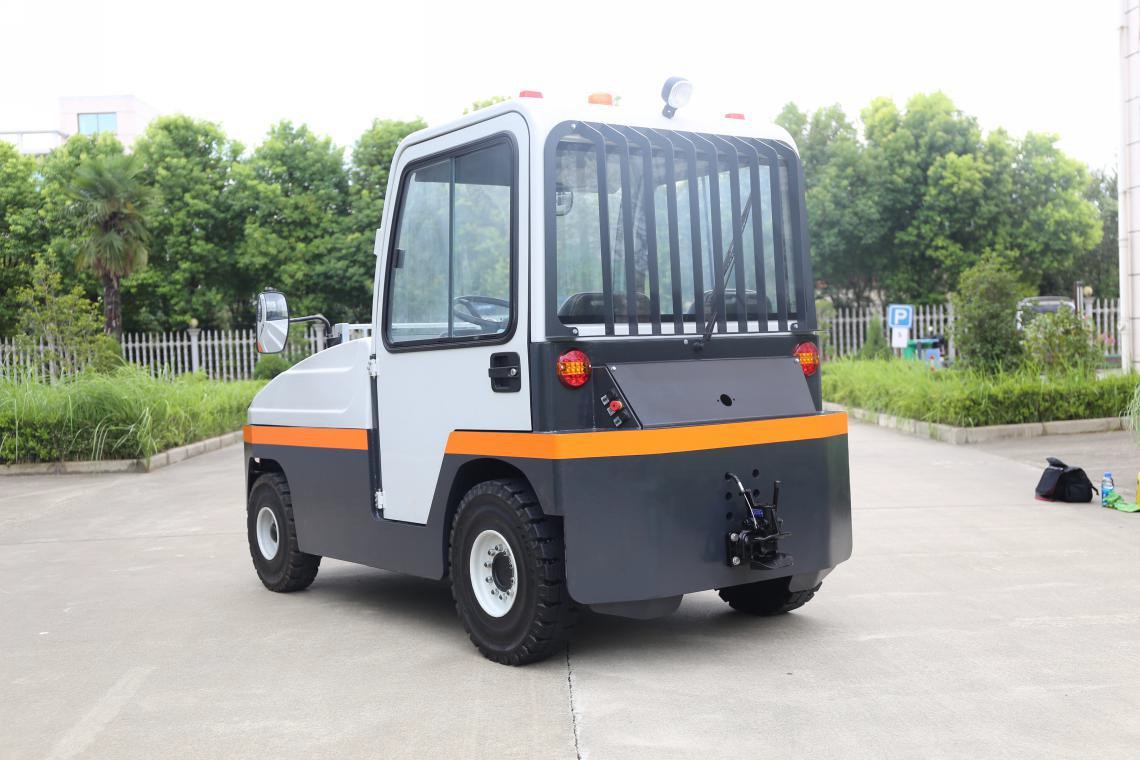

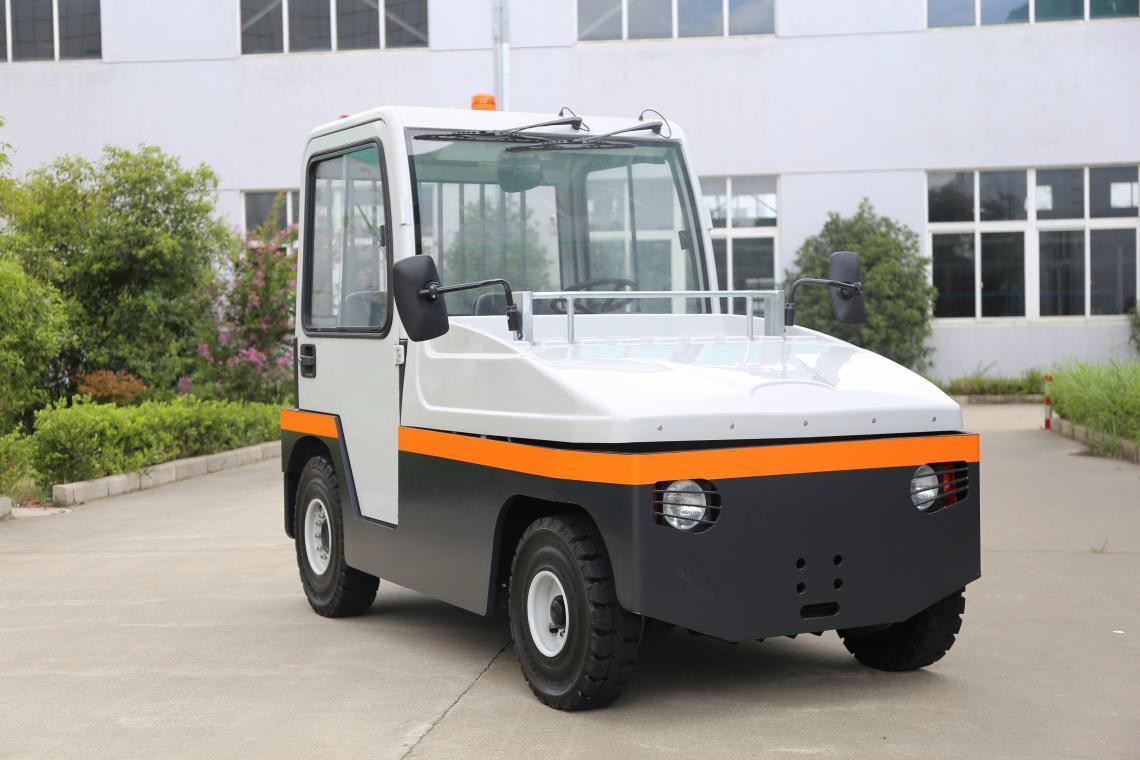

DXTD300 high-power electric tractor is a new-generation environment-friendly electric tractor with independent intellectual property rights, which follows the design concept of zero emission and absorbs the research and development of advanced electric tractor technology at home and abroad. Electric luggage tractors can be divided into pre-set electric luggage tractors, rear-mounted electric luggage tractors, electric luggage tractors without cab, which can be equipped with heating and cooling air conditioners according to user requirements.
This series of tractor and unique design, performance is remarkable, broadminded, secure, efficient energy conservation and environmental protection, long range, quick replacement battery, control more convenient, quiet, smooth and comfortable, stable and reliable performance, convenient maintenance, is widely used in airports, national defense, railway, postal service, manufacturing, pharmaceutical, logistics, and other fields.
★Body structure: with unique arch design, beautiful appearance and strong strength.
Special observation channels can be clearly seen at the back of the traction plug, ergonomic control room design, the front and rear parts of the car hood design simple, generous, easy to check and maintain. CAN communication CAN be realized by vehicle management system
★Electrical control system: CURTIS ac controller is selected from American CURTIS,
which can provide tractor with high frequency, high efficiency and quiet working mode. The whole machine is responsive and easy to control, with regenerative
braking and steeples speed regulation functions. It is energy-saving, environmentally friendly and reliable.
★Driving system: adopt the integrated bridge of PMP (Italy) efficient wet brake drive,
and 72V ac motor, the power reaches 28.7kw, strong driving and no load speed is 25km/h.
★Battery system:
Selected lithium battery, capacity of 70 degrees, no-load continuous range of up to 200km, equipped with special quick-effect charging machine.
Grapheme battery is used for fast power.,
★Steering system, steering bridge design with independent intellectual property rights, the minimum turning radius is only 3300mm, EPS electric power steering, making steering flexible and accurate, portable and reliable, energy-saving and safe.
★Suspension system: adopt the front and rear spiral spring and the cylindrical shock
absorber, which improves the operating comfort and greatly reduces the driver's labor intensity.
★Brake system: the front wheel is equipped with sensitive and reliable drum brake,
hydraulic booster multi-loop hydraulic brake system and Curtis intelligent auxiliary electric brake, which has higher reliability and gives you a strong safety guarantee. The rear wheels are free of wet braking and easy to maintain.
