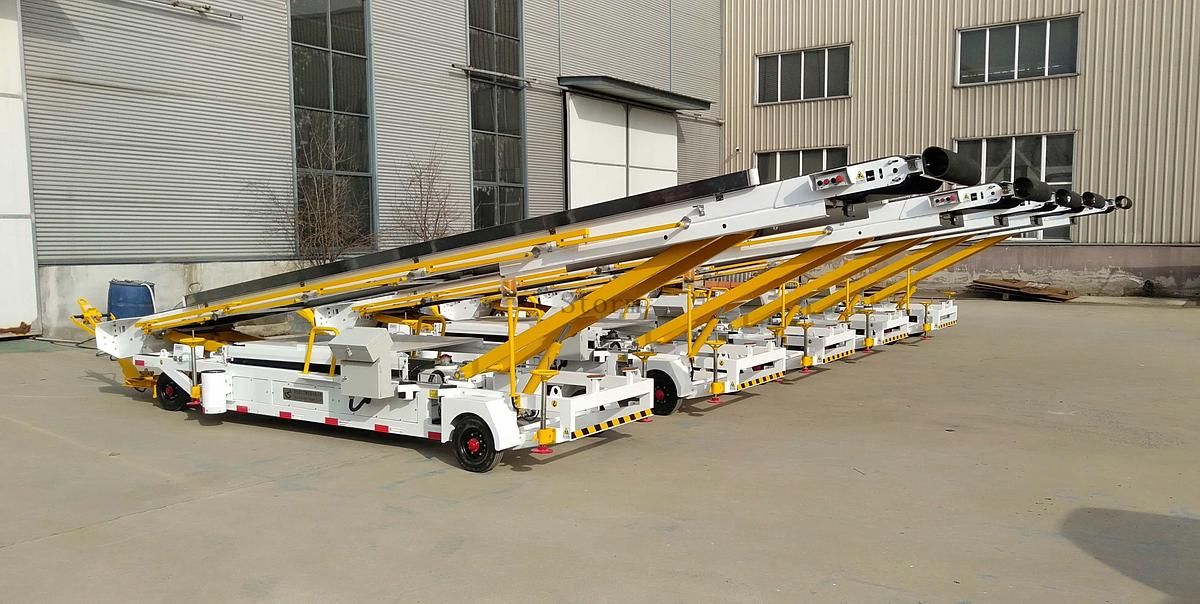

STORM PD38E
Storm Aviation GSE
Manufacturer | Storm Aviation GSE |
Model | STORM PD38E |
Year | 2025 |
Condition | New |
Stock Number | STORM PD38E |
Overall dimensions | 9220/8370×1550×1300mm |
wheelbase | 4100mm |
Front track width | 1330mm |
Rear track width | 630mm |
Ground clearance | 150mm |
Vehicle weight | 2260kg |
Belt width | 700mm |
Transmission speed | 0.16o0.5 m/s |
Maximum uniformly distributed load of conveyor belt | 135Kg/m |
Height of front end of conveyor | 880mmo4600mm |
Height of rear end of conveyor | 450mmo1860mm |
Manual hydraulic auxiliary walking speed | 6km/h |
Maximum towing speed | 30km/h |
Transfer frame width | 810mm |
Belt thickness | 8mm |
Travel speed regulation range | 0.3o5km/h |
Oil Pump Motor Type | Permanent magnet synchronization |
Oil Pump Motor Working system | S1 |
Oil Pump Motor Rated power @ rated speed | 5.5KW@2000rpm |
Battery type | lithium iron phosphate |
Battery pack | With battery management system (BMS) and battery fire extinguishing system |
Input voltage | AC 380V |
Output voltage | 200-750VDC |
Maximum output current | 75/112.5A |
Power factor | 0.99 |
Input frequency | 45-65Hz |
Input mode | three-phase five-wire system |
Protection grade | IP67 |
Endurance (km+t) | 25+750 |
Voltage/capacity | 347.76 V/60.16KWH |
Electric time (h) | 8 hours (or 2 hours for fast charging) |
