Storm PD 0102
Storm GSE
Overall Dimensions | 3704*1800*566 | Frame | 8# Channel Steel |
Platform Dimensions | 1900*1800*520 | Deck Plate | 3mm Checkered Plate |
Working Height |
508mm-520mm |
Roller | 76x3mm Seamless Steel Tube |
Front Wheel | 400-8 | Tow Bar | 100*50*5 Rectangular Tube |
Rear Wheel | 400-8 | Tail Hook | 20mmSteel Plate |
Rated Load Capacity | 1600kg | Pin | Φ35Round Steel |
Maximum Speed | 25km/h | Self Weight | 630Kg |

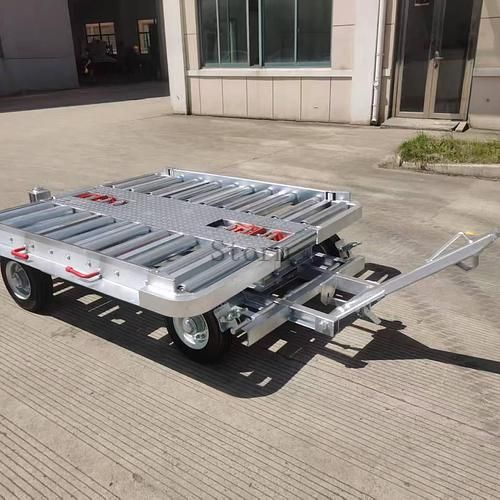

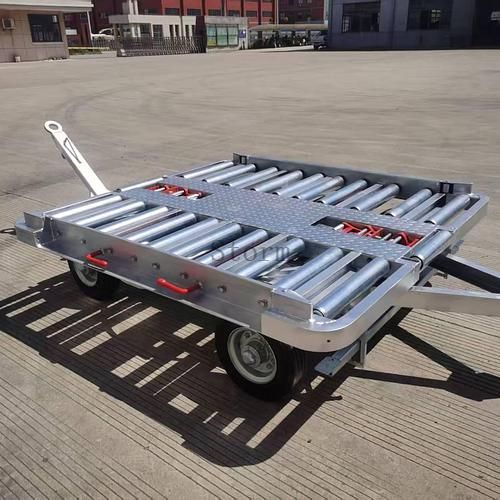

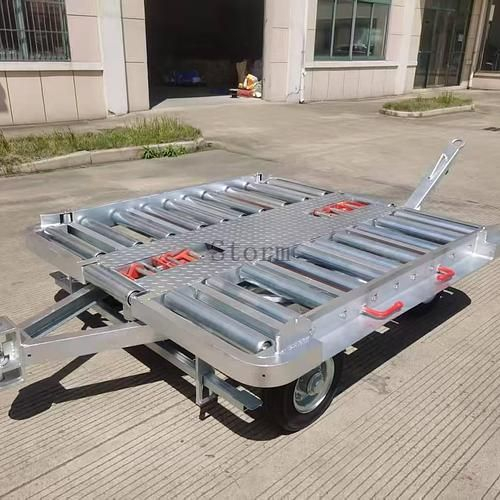

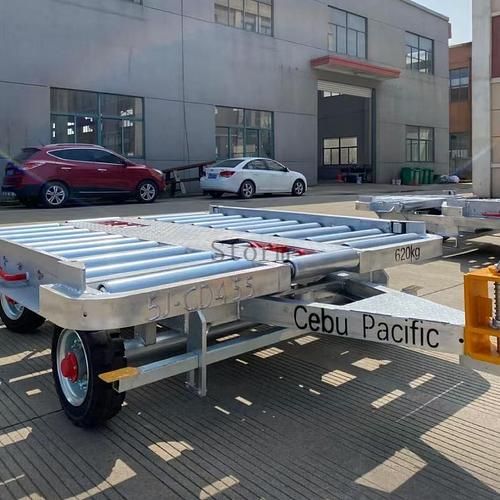

A. The trailer work platform is equipped with 22 galvanized rollers measuring 76×3 mm, which rotate flexibly, operate with ease, and are wear-resistant as well as corrosion-resistant.
B. The tow bar serves a dual function of multi-vehicle connection and braking (braking is engaged whether the tow bar is raised or lowered).
C. The front wheels are designed with a turntable steering mechanism, allowing up to 100 degrees of smooth steering during operation. The tires are 400-8 solid
rubber type, providing long service life.
D. Based on the dimensions of the container pallets, fixed side guard plates are installed on both left and right sides of the trailer, while flip-type end plates are designed at the front and rear. All plates extend 30 mm above the roller surface to ensure secure transportation of the container pallets.
E. A rotating tow hook is mounted at the rear, enabling more convenient operation and higher reliability.
F. Protective forklift slots are welded beneath the channel steel frame to meet practical operational requirements.
G. Compatible with: LD1, LD2, and LD3 container pallets.
